PARALUX® PX1 Shorty THW
Product information

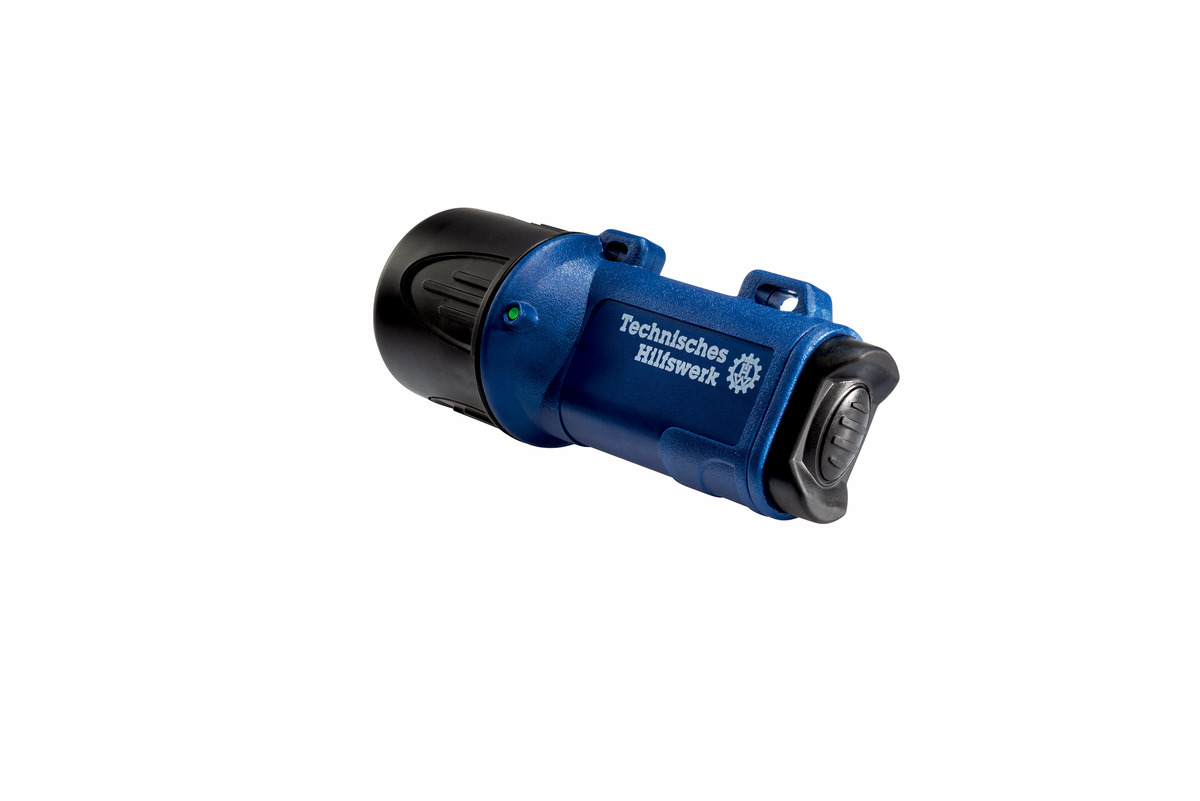

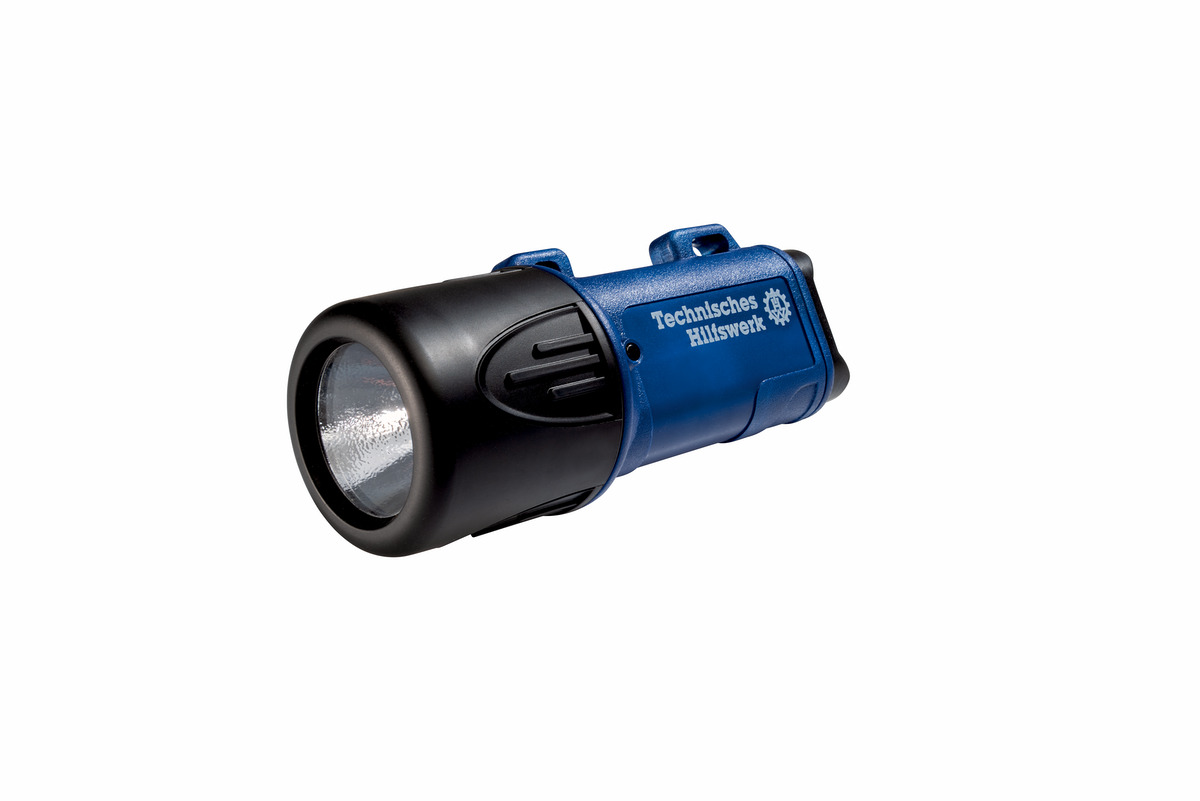

The certified safety lamp PARALUX® PX1 SHORTY THW in blue color bears the logo of the German Federal Agency for Technical Relief "THW" and is a strong, ultra-compact companion for relief workers of the THW. The lamp is only 110mm long and 41mm wide; together with its low weight of 115g, this all-rounder is perfect for use in restricted spaces and additionally ensures a pleasant wearing comfort on the helmet. The power pack comes with 5-watt Cree-LEDs (80 lumens) and allows a maximum headlight range of 120m over a period of about eight hours without interruption; at reduced power, the two AA batteries last up to 15 hours. The battery status indicator has proven to be particularly helpful in practice and indicates the battery power in different colors (green = ok / red = only 25% remaining). In addition, three short flashes of the lamp (every 30 seconds after a burn time of approx. 8 hours) display a low battery warning signal once the limit is reached. Thanks to its specific orange peel reflector surface, the PARALUX® PX1 SHORTY THW produces a uniform luminous cone – which significantly reduces glaring effects e.g. in smoke-filled rooms. The IP68 certified quality product also impresses users when it comes to ergonomics and long service life, whether with its ergonomic rear switch, which is extremely easy to operate even when wearing work gloves, its easy attachment to the helmet mounting system PARASNAP® or its robust polycarbonate housing.Benefits
- Short, target group-oriented luminaire THW
- Very low weight (114g incl. two AA batteries)
- ll luminaire (110 mm length)
- rubberized lamp head, rubberized rear switch
- explosion protection
- battery condition indicator
- exclusive brand illustration technical relief organisation
Equipment
- flashlight ATEX and IECEx certified for Zone 0 / 21
- 100 % watertight
- polycarbonate with antistatic additive
- rubberized lamp head
- rubberized rear switch for one-hand operation
- lamp: CREE LED XT-E (5W)
- luminance: approx. 80 lumens
- headlight range: approx. 120 m
- battery type: 2x AA/Mignon/each 1.5 V
- supplied in blister packaging including batteries
- battery condition indicator

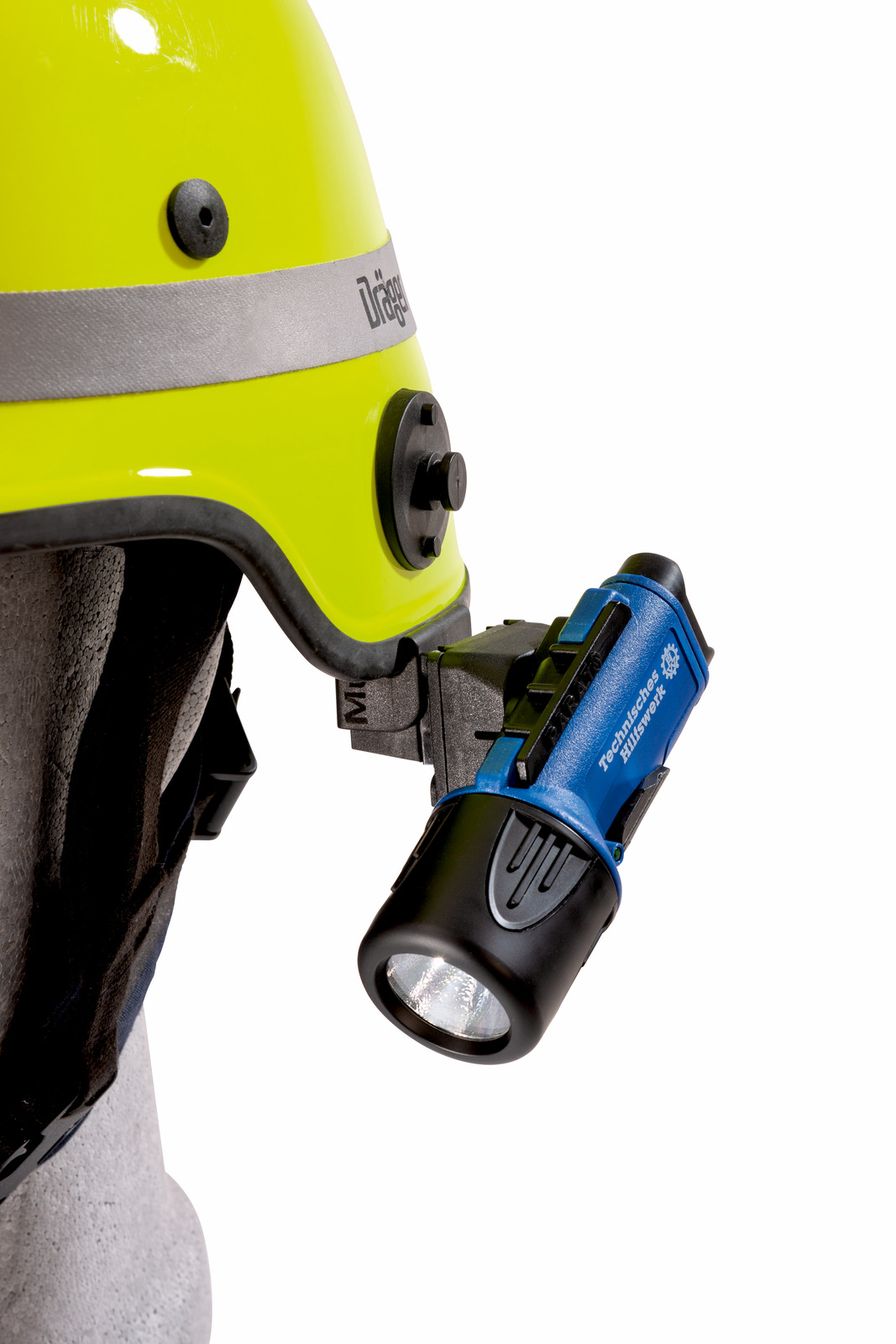

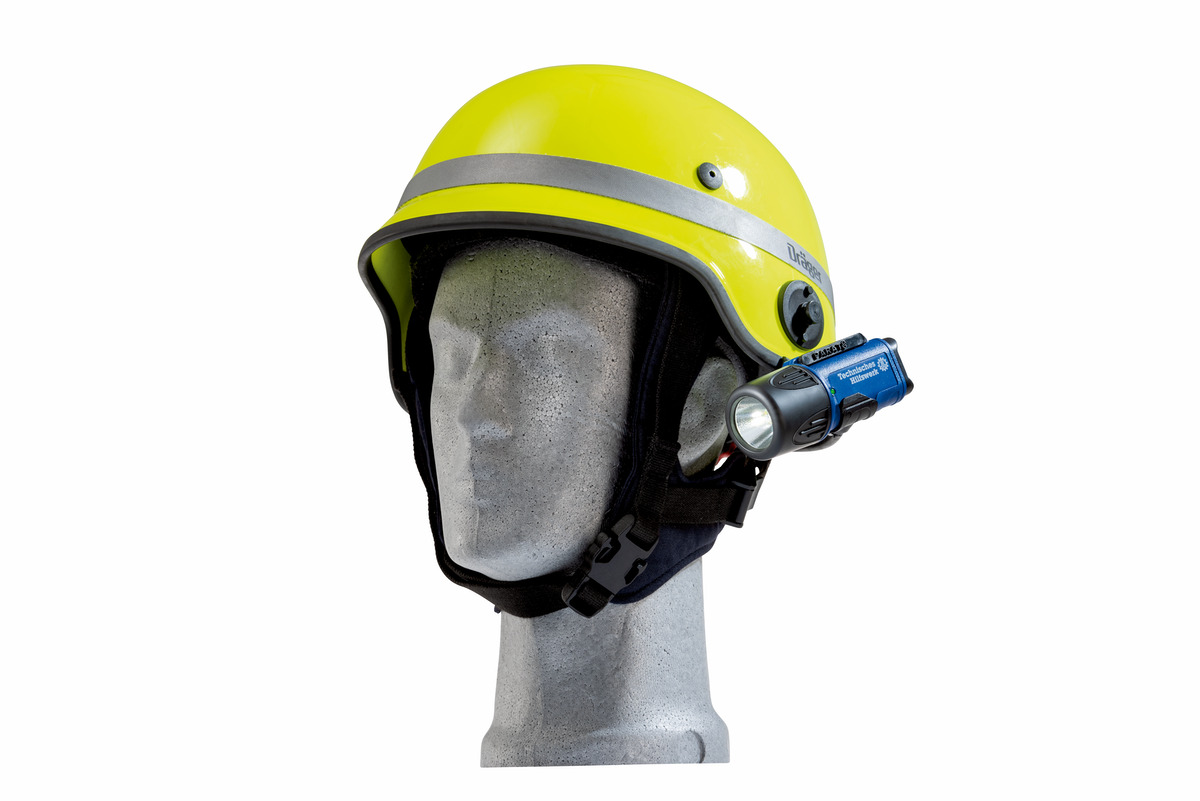

- compatible with almost all helmet mounts and with our PARASNAP®
Scope of Delivery
- 2x AA/Mignon/each 1.5 V, 1x user manual, 1x declaration of conformity
Videos
By loading the video, you consent to the transfer of data to YouTube in accordance with our privacy policy.
By loading the video, you consent to the transfer of data to YouTube in accordance with our privacy policy.
By loading the video, you consent to the transfer of data to YouTube in accordance with our privacy policy.
Technical Data
| Security-Zone: | Zone 0, Zone 21 |
|---|---|
| Luminous flux: | 80 lumens |
| Range: | approx. 120 m |
| Color: | Blue |
| Material: | PC (Polycarbonate) |
Dimensions
| Width: | 110 mm |
|---|---|
| Depth: | 41 mm |
| Height: | 43 mm |
| Weight: | 80 g |
Documents
| Data sheet: | Download |
|---|
Best light for maximum operational readiness!
Stock photo. Subject to technical modifications; errors and omissions excepted.
Lumen-Information from the LED manufacture referring to the lamp.
